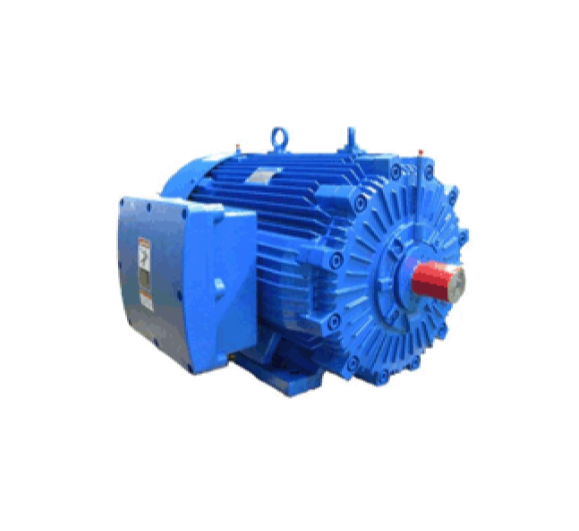

Low Voltage Motors
IEC 60034 and NEMA MG-1
Possible to accommodate all classification societies (TYPE APPROVAL CERTIFICATE: KR, DNV, BV)
Capable of small batch production of various types
Quick delivery response
Applicable to all frame sizes above 71
Cast terminal box and terminal block
Equipped with cable gland
Compatible with IE1, IE2, IE3
Custom production is available according to customer needs

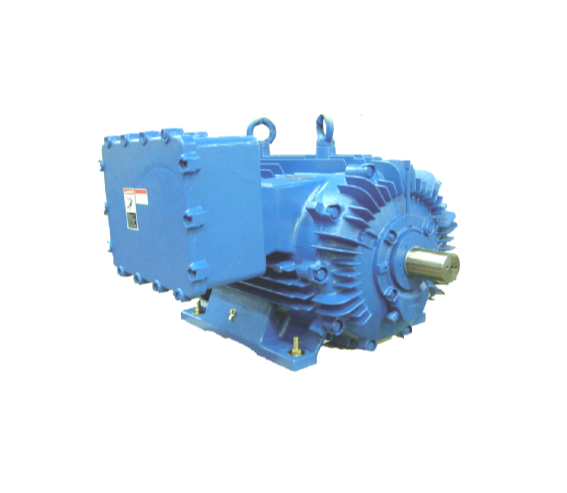

Low Voltage Motors
An explosion-proof structure designed to withstand internal explosions caused by explosive gases that have infiltrated the enclosure, preventing the propagation of flames to the external explosive atmosphere.
Explosion Protection Symbol : Ex d
Group Symbol : II B, II C
Maximum Surface Temperature : T4 / T5 / T6
External and Mounting Structure : Totally Enclosed (TEFC, TEAO, TENV), Horizontal (B3), Vertical (B5, V1), B3B5
Ambient Conditions : Operating ambient temperature : -20~50℃
Hazardous Locations : Category 1 and 2 places
Protection Class : IP55, 56, 65&66

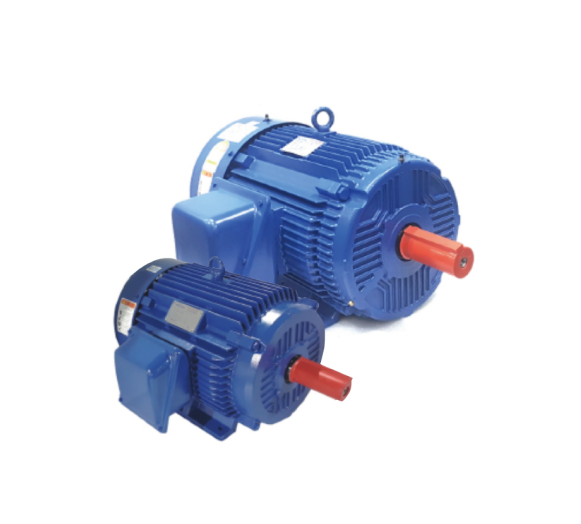

Low Voltage Motors
Compliant with IEC/NEMA standards
Foot Mount Type
0.2 ~ 375kW ※ For specifications other than dimensions, please inquire separately
Applications: Primary/auxiliary power for general industrial machinery such as pumps, fans, compressors
Continuous duty rating
Class F insulation system
Customizable Frame, Bracket
Low Voltage Motors
Compliant with IEC/NEMA standards
FLANGE TYPE (VERTICAL)
0.2 ~ 375kW ※ For specifications other than dimensions, please inquire separately
Applications: Primary/auxiliary power for general industrial machinery such as pumps, fans, compressors
Continuous duty rating
Class F insulation system
Cast Frame, Bracket
High Voltage Motors
Flameproof Enclosures, Ex d Pressurized Explosion-Proof, IC411, IP55
Squirrel cage Rotor : Brazed rotor with CU bar & ring
Poles : 2p ~ 8p
Voltage : 380V ~ 13.2 kV
Output Range : 75 ~ 1,000 kW
Construction : B3 (V1 as Optional)
Frame Number : Fr.280 ~ Fr.450
